7.3 Liter Ford Oil Pan Saver Kit

Ford 7.3 Oil Pan Repair KitThis oil pan repair kit covers the 7.3 L Ford Powerstroke for the following years: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003. Please include the year model and build date during checkout.This kit is very easy to install yourself, at home, over the weekend. No truck lift is needed to complete the installation of the kit. No special tools are needed but an angle grinder does help the process go much faster.

Buy-Button

Oil Pan Repair Kit Cost = $295


Step 1: Clean Pan

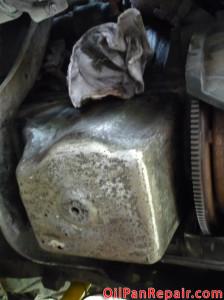

7.3 Ford Oil Pan Repair - Clean Oil Pan

  • Drain Oil from the truck
  • Remove the oil filter and save for later
  • Wrap the oil filter housing with a rag
  • COMPLETELY clean the outside of the pan with 36 grit sand paper and an angle grinder
  • Don’t worry about holes in the pan they will be covered up with epoxy
  • Wipe the entire pan with Acetone and be sure that there is NO oil dripping from the drain plug
  • INSERT the oil drain plug back into the pan

Step 2: Mix Epoxy

Ford Oil Pan Repair Kit - Mixing The Epoxy Glue

  • Dry fit the shell onto the clean oil pan
  • Acetone the inside of the shell
  • Prepare a surface to mix the epoxy on. Ideally this a movable and solid surface.
  • Use a solid putty knife or scrap piece of metal/wood to mix the epoxy
  • WEAR GLOVES
  • Work time with the epoxy is roughly 30 minutes. Take your time mixing it and make that it is 100% blended.

Step 3: Prep for Install

Mixed Epoxy for Ford Oil Pan Repair Kit

  • Have everything prepped and ready to cover the pan
  • Clean the pan with acetone again
  • Clean the shell with acetone again
  • Have jack and wooden blocks ready under the truck
  • Clean the old oil filter and have it ready under the truck (you’ll use this to brace the wedge)

Step 4: Cover the Pan

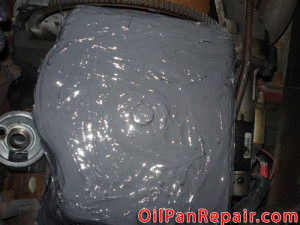

Oil Pan Repair - Oil Pan Covered In Epoxy

  • Make sure the oil drain plug has been re-installed
  • COVER the oil pan with the epoxy making sure to cover all areas that were prepped
  • Make sure to use 100% of the epoxy
  • Install the shell and press up evenly by hand

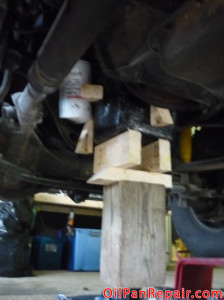

Step 5: Setup Blocks

Leave the oil pan kit in place for 30 hours or more

  • Place the jack underneath and LIGHTLY raise to hold the shell in place. Use wooden blocks to get around the drain plug.
  • Install the old oil filter
  • Insert wedge between the oil filter and the pan saver shell
  • Wait 30 hours minimum for the epoxy to cure. Wait longer if it’s cold outside.
  • After 30 hours has passed, remove the jack, blocks, oil filter and cut the epoxy off the drain plug.
  • Install new oil filter, fill with oil, crank the truck, let it warm up and enjoy your leak free oil pan.

Testimonials

The estimate to fix my truck was over $2,000. With very few tools and a Saturday afternoon I managed to patch up my pan for a fraction of the price. It’s been 3 years now and I still don’t see any spots in the driveway. This kit saved me well over a grand!
